LIMA Fish Feed Machine Manufacturer
Henan Lima Machinery Co., Ltd is a leading manufacturer of pellet feed machines in China. Its floating fish feed extruder machine has been sold worldwide, including in Nigeria, Malawi, Ecuador, Pakistan, and Thailand. Clients can buy small fish feed machines, poultry food machines, and large fish feed and feed production lines to satisfy their needs.

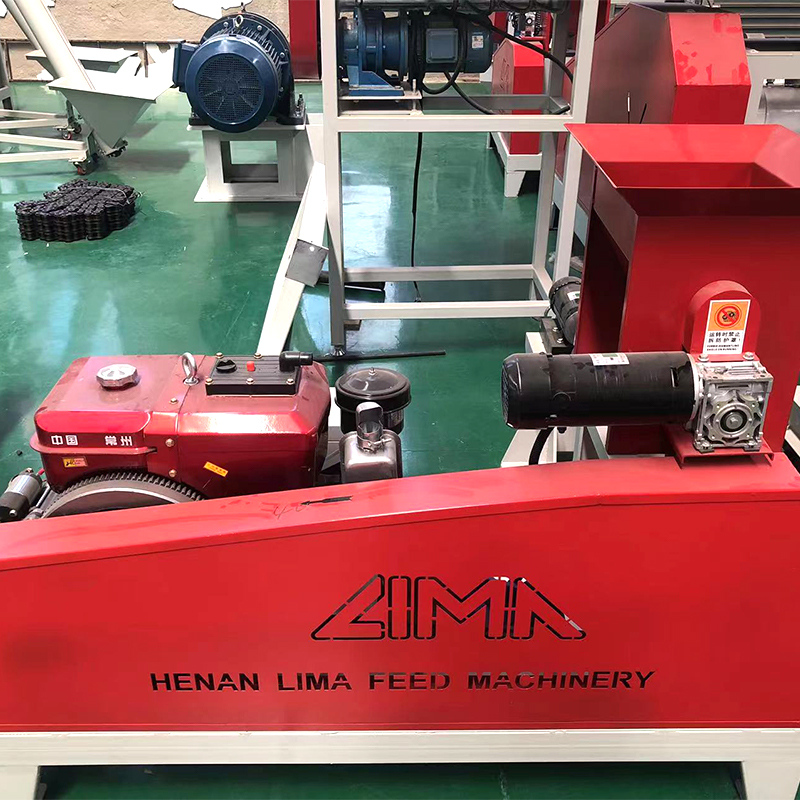

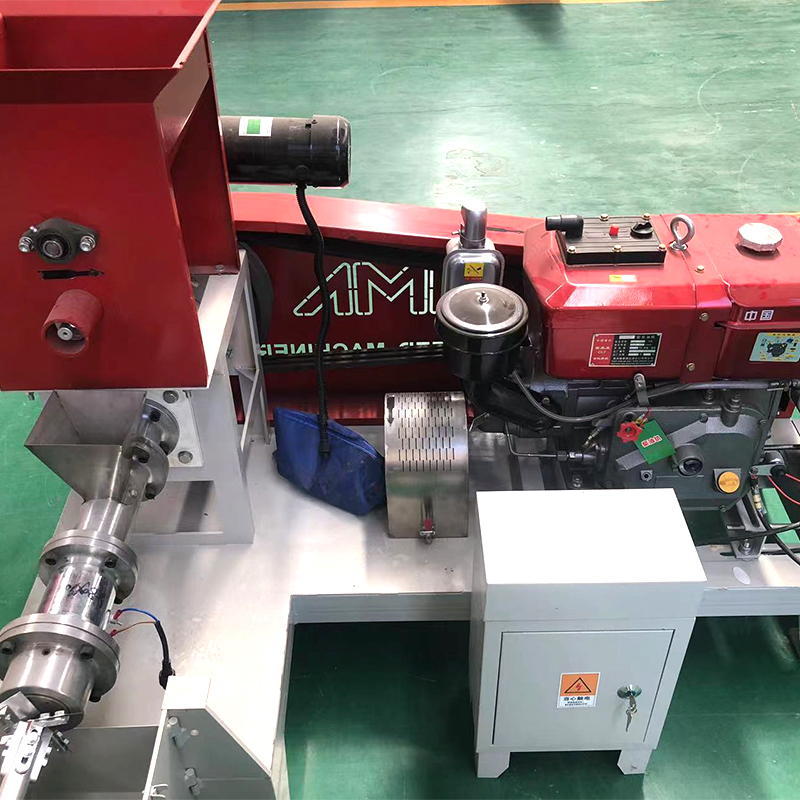

Two engine types
Functionally, the production principle of diesel and motor types is the same in all respects—just the different kinds of power.
If there is a lack of electricity in your local area, or the electricity is unstable, it is recommended to choose the diesel type. Still, if the electricity is stable, the electric motor is recommended.
Product Parameter
Model | Capacity (kg/h) | Main power (kw) | Feeder power (kw) | Screw Diameter (mm) | Cutter power (kw) | Machine size (mm) | Weight (kg) |
LM40 | 40-60 | 5.5 | 0.4 | Φ40 | 0.4 | 1400*1030*1200 | 240 |
LM40 -Diesel | 40-60 | 12HP | 0.4 | Φ40 | 0.4 | 1400*1250*1200 | 360 |
LM50 | 80-100 | 11 | 0.4 | Φ50 | 0.4 | 1470*1100*1250 | 320 |
LM50-Diesel | 80-100 | 18HP | 0.4 | Φ50 | 0.4 | 1660*1170*1050 | 540 |
LM60 | 100-150 | 15 | 0.4 | Φ60 | 0.4 | 1470*1100*1250 | 350 |
LM60-Diesel | 100-150 | 25HP | 0.4 | Φ60 | 0.4 | 1470*1120*1250 | 590 |
LM70 | 180-200 | 18.5 | 0.4 | Φ70 | 0.4 | 1650*1400*1300 | 580 |
LM70-Diesel | 180-200 | 30HP | 0.4 | Φ70 | 0.4 | 2060*1450*1300 | 740 |
LM80 | 200-300 | 22 | 0.6 | Φ80 | 0.6 | 1800*1450*1300 | 695 |
LM80-Diesel | 200-300 | 35HP | 0.6 | Φ80 | 0.6 | 2150*1500*1300 | 850 |
LM90 | 300-400 | 37 | 0.6 | Φ90 | 0.8 | 2100*1450*1350 | 950 |
LM120 | 500-800 | 55 | 2.5 | Φ120 | 1.1 | 2440*1950*1650 | 1860 |
LM200 | 1.8t-2.0t | 132 | 4 | Φ200 | 2.5 | 3100*2850*1900 | 3800 |
Packing and delivery
1. The standard export packaging for a pellet machine is a wooden case.
2. Once the machine is manufactured well, we will send you packing photos to check the quality.
3. we will test the machine before packing to ensure you receive good machines.
4. Machine packaging can be tailored to meet clients’ specific needs.
Multifunctional feed extruder
Aquafeed:catfish, tilapia, shrimp
pet food:cats, dogs
Machine core components
Omnidirectional circulating stirring :
The screw pushes the material, and the material is automatically and evenly unloaded, saving time and effort.
The Mould:
Different shapes and sizes of particles can be produced by changing molds. And the thickness and length of the particles can also be adjusted freely. A floating fish feed extruder machine can be used for multiple purposes.
Variable speed cutting device:
The length of feed pellets can be adjusted arbitrarily.
The control panel:
The whole machine operates an control panel, which is clear at a glance, safe and convenient.
High quality machine:
Strong power, stable work, low failure rate, long service life
