30-400kg/h Fish Feed Processing Line Fish Feed Extruder Fish Feed Making Machine
This is a small fish feed production line, including ginder,mixer, extruder and dryer, which can make 40-300kg feed per hour.
Contact US
Get Price
Share:
Content
This is a small fish feed production line, including ginder,mixer, extruder and dryer, which can make 40-300kg feed per hour.

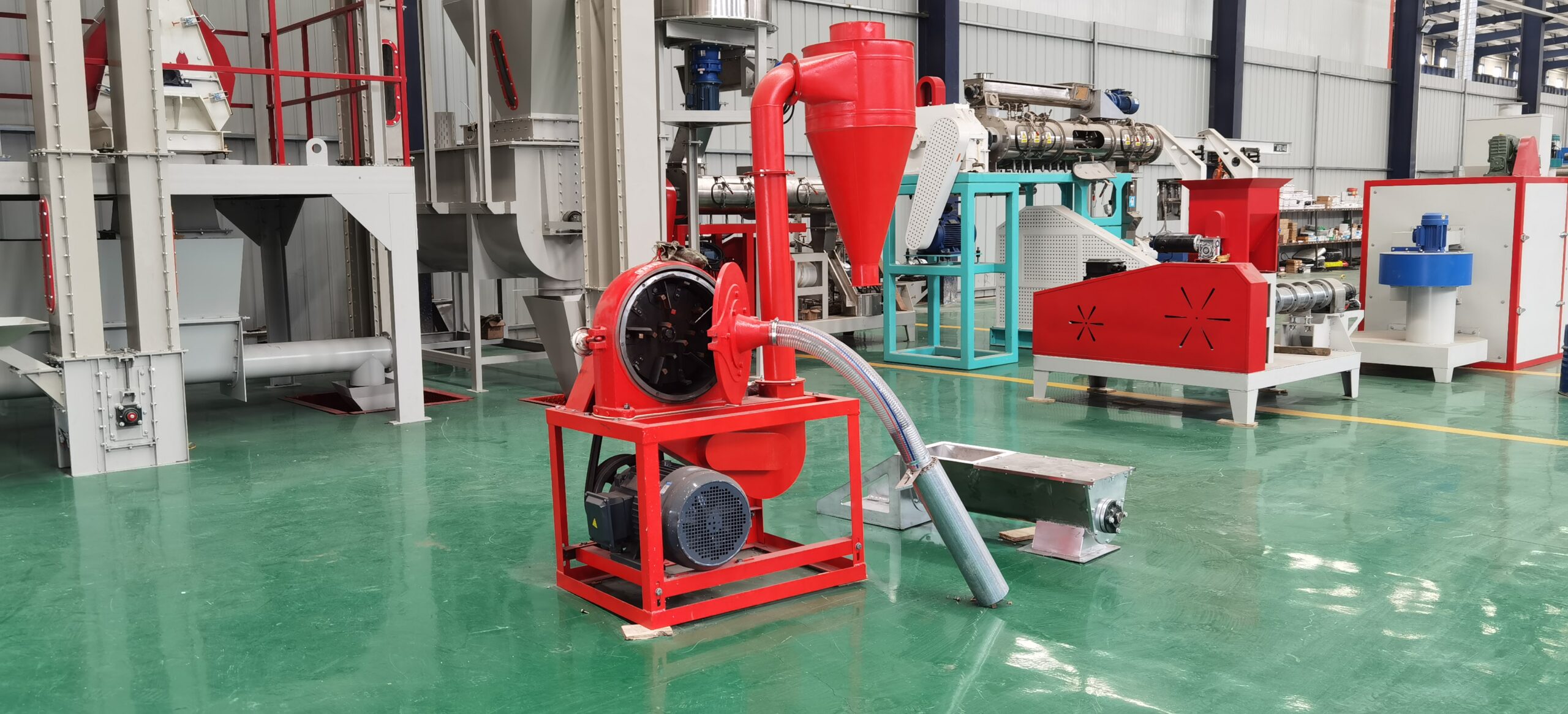

Ginder: Grinding grain to make raw materials powder

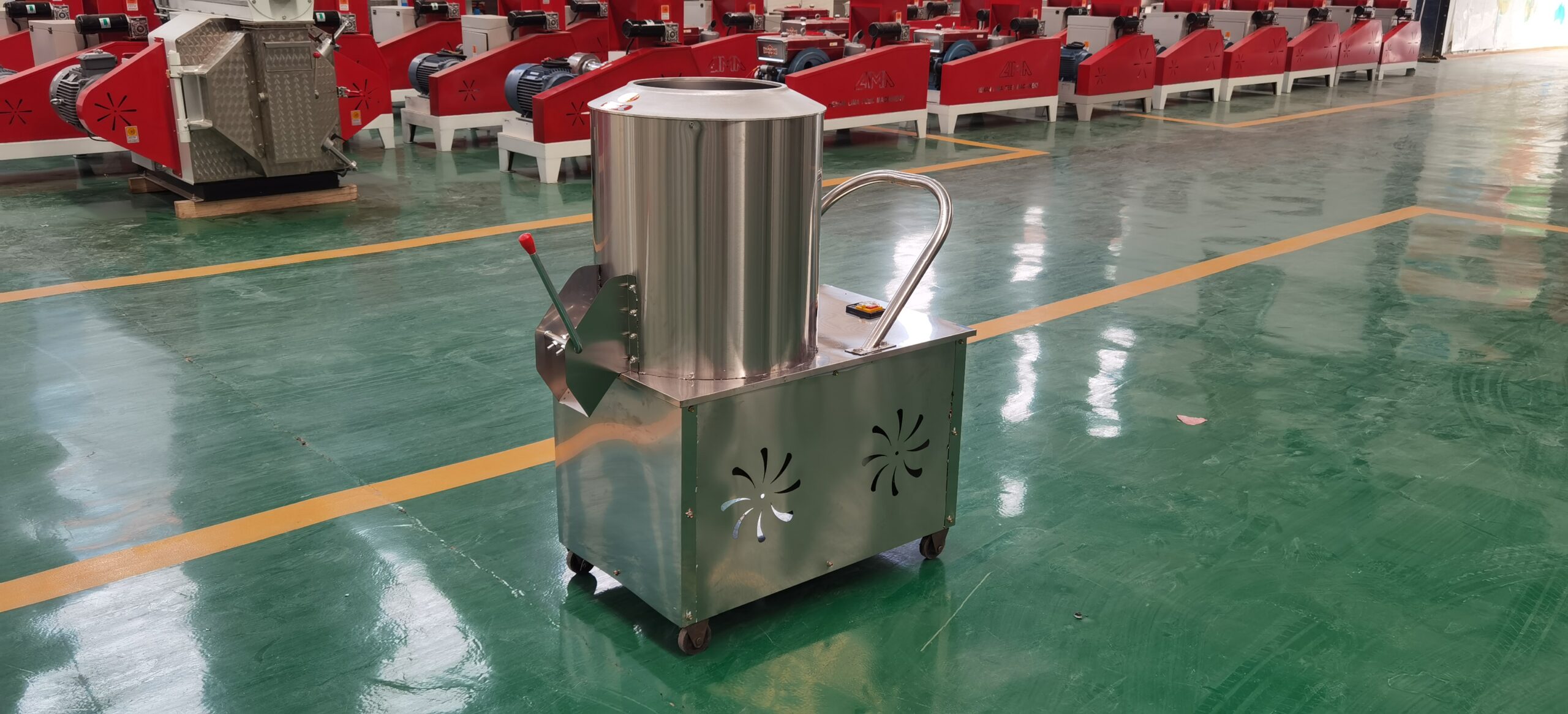

Mixer:To mixing different raw materials powder,and blend evenly according formula
Extruder:To make floating fish feed pellet
Model | Capacity (kg/h) | Main power (kw) | Feeder power (kw) | Screw Diameter (mm) | Cutter power (kw) | Machine size (mm) | Weight (kg) |
LM40 | 40-60 | 5.5 | 0.4 | Φ40 | 0.4 | 1400*1030*1200 | 240 |
LM40 -Diesel | 40-60 | 12HP | 0.4 | Φ40 | 0.4 | 1400*1250*1200 | 360 |
LM50 | 80-100 | 11 | 0.4 | Φ50 | 0.4 | 1470*1100*1250 | 320 |
LM50-Diesel | 80-100 | 18HP | 0.4 | Φ50 | 0.4 | 1660*1170*1050 | 540 |
LM60 | 100-150 | 15 | 0.4 | Φ60 | 0.4 | 1470*1100*1250 | 350 |
LM60-Diesel | 100-150 | 25HP | 0.4 | Φ60 | 0.4 | 1470*1120*1250 | 590 |
LM70 | 180-200 | 18.5 | 0.4 | Φ70 | 0.4 | 1650*1400*1300 | 580 |
LM70-Diesel | 180-200 | 30HP | 0.4 | Φ70 | 0.4 | 2060*1450*1300 | 740 |
LM80 | 200-300 | 22 | 0.6 | Φ80 | 0.6 | 1800*1450*1300 | 695 |
LM80-Diesel | 200-300 | 35HP | 0.6 | Φ80 | 0.6 | 2150*1500*1300 | 850 |
LM90 | 300-400 | 37 | 0.6 | Φ90 | 0.8 | 2100*1450*1350 | 950 |
LM120 | 500-800 | 55 | 2.5 | Φ120 | 1.1 | 2440*1950*1650 | 1860 |
LM200 | 1.8t-2.0t | 132 | 4 | Φ200 | 2.5 | 3100*2850*1900 | 3800 |
Dryer:To drying feed pellet, reduce the moisture of feed, can keep feed in stock 3 months
